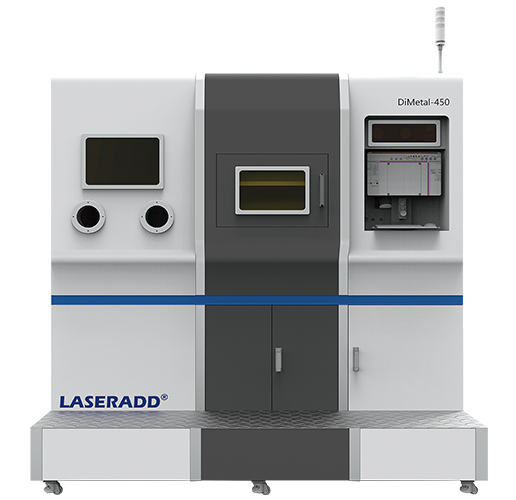

Dimetal-450 is a highly efficient solution for large-size metal 3D printing applications. The dual laser and dual mirror forming scheme can improve the forming efficiency by more than 80%. It is the first time to adopt a closed internal powder processing system to reduce the harm of dust to human body. Used in mold, automobile, aerospace, nuclear power military industry, orthopedic medicine, etc.
Device name/model
laser
Scanning system
Scanning speed
Molding cavity size
The thickness of the layered
Feeding way
Molding material
The forming speed
The control software
The data format
Power supply and power consumption
External dimensions of equipment
The environment temperature
DiMetal-450
Infrared Ytterbium doped Fiber Laser, 500W (optional 700W)
Dynamic focus scanning system
The highest 34 m/s
425mm*425mm*450mm
0.02 mm to 0.2 mm
Double cylinder unidirectional powder supply
Stainless steel, cobalt chromium alloy, titanium alloy, high temperature alloy, die steel, aluminum alloy and other metal powder
2-80 - cm3 after/h
Independent development of control and path planning software system
STL file or other convertible format
380V 50Hz 10Kw
2540mm (L) *1500mm (W) *2454 (H)
Operating temperature 15-30℃
